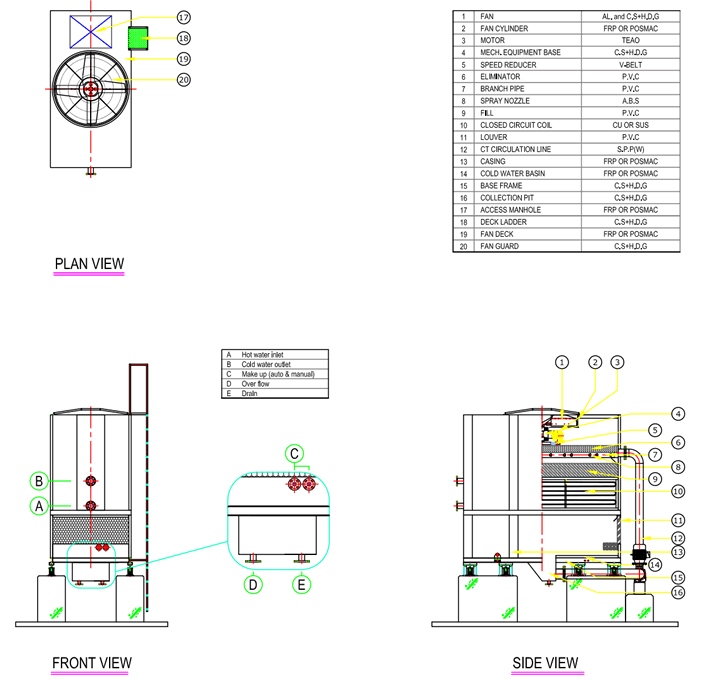

저소음 대향류 밀폐형 냉각탑 (KSNC-C Series C44C-14R01)

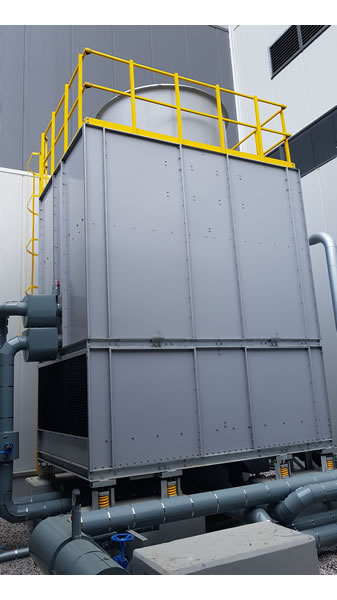

저소음 대향류 밀폐형 냉각탑
저소음 대향류 밀폐형 냉각탑
  • CASING : 내식성 및 내화학적 우수한 특성을 가진 FRP 또는 Al,Zn,Mg 3원계 고 내식성 합금 도금강판을 사용합니다.
  • FAN : 날개 각도의 조정이 용이한 구조로 Aluminum Blade의 Axial Fan을 사용하여 운전소음과 진동을 최소화 하였습니다.
  • COIL : CU OR SUS COIL로 설계하여, 외기 및 냉각탑 부하에 따라서 백연저감 운전 및 드라이 쿨링이 가능합니다.
  • ELIMINATE & LOUVER : 난연성 PVC재질로서 냉각수의 외부 비산을 최대한 억제하였고, 정압 손실을 최소화하였습니다.
  • BASIN : 내식성 및 내화학적 우수한 특성을 가진 FRP 또는 Al, Zn, Mg 3원계 고 내식성 합금 도금강판을 사용하며,
    일체형(합금도금강판은 조립형)으로 제작하여 물의 누수가 없으며, 운전시 필요한 저장수를 충분히 확보할 수 있는 구조로 설계하였습니다.

저소음 대향류 밀폐형 냉각탑 (KSNC - C Series)

저소음 대향류 밀폐형 냉각탑
Model Capacity
(CRT)		 Heat
Load
(kcal/hour)		 Water
Flow
(m³/hour)		 Motor
(kW)		 Shipping
weight
(kg)		 Operating
weight
(kg)		 Dimension Piping Schedule
Length
(mm)		 Width
(mm)		 Height
(mm)		 Inlet
(A)		 Outlet
(A)		 Make-up
(A)		 Overflow
(A)		 Drain
(A)
KSNC-90C 90 351,000 70.2 3.7 3,533 5,639 2,400 3,400 4,000 100 100 32 50 50
KSNC-100C 100 390,000 78 5.5 3,551 5,656 2,400 3,400 4,000 125 125 32 50 50
KSNC-115C 115 448,500 89.7 5.5 4,066 6,501 2,800 3,400 4,500 125 125 32 50 50
KSNC-125C 125 487,500 97.5 7.5 4,081 6,516 2,800 3,400 4,500 125 125 32 50 50
KSNC-140C 140 546,000 109.2 7.5 5,295 8,360 2,800 4,500 4,500 150 150 32 50 50
KSNC-150C 150 585,000 117 11 5,336 8,639 2,800 4,500 4,500 150 150 32 50 50
KSNC-S175C 175 682,500 136.5 15 5,455 8,808 2,800 4,500 4,500 150 150 32 50 50
KSNC-S175C 175 682,500 136.5 11 5,953 9,775 3,200 4,500 4,800 150 150 50 80 80
KSNC-200C 200 780,000 156 15 6,063 9,929 3,200 4,500 4,800 150 150 50 80 80
KSNC-225C 225 877,500 175.5 15 6,743 11,542 3,600 4,500 5,250 200 200 50 80 80
KSNC-250C 250 975,000 195 18.5 7,064 12,023 3,600 4,500 5,250 200 200 50 80 80
KSNC-275C 275 1,072,500 214.5 18.5 8,201 13,830 3,600 5,100 5,600 150 X 2 150 X 2 50 80 80
KSNC-300C 300 1,170,000 234 22 8,387 14,117 3,600 5,100 5,600 150 X 2 150 X 2 50 80 80
KSNC-325C 325 1,267,500 235.5 22 9,200 15,401 3,600 5,600 5,600 150 X 2 150 X 2 50 80 80
KSNC-350C 350 1,365,000 273 30 9,222 15,423 3,600 5,600 5,600 150 X 2 150 X 2 50 80 80
KSNC-375C 375 1,462,500 292.5 22 10,712 18,067 3,900 6,200 6,000 150 X 2 150 X 2 50 80 80
KSNC-400C 400 1,560,000 312 30 10,734 18,089 3,900 6,200 6,000 150 X 2 150 X 2 50 80 80
KSNC-425C 425 1,657,500 331.5 37 11,,081 18,560 3,900 6,200 6,000 150 X 2 150 X 2 50 80 80
KSNC-450C 450 1,755,000 351 30 12,648 22,278 4,600 5,600 6,250 200 X 2 200 X 2 80 100 100
KSNC-475C 475 1,852,500 370.5 37 12,767 22,396 4,600 5,600 6,250 200 X 2 200 X 2 80 100 100
KSNC-500C 500 1,950,000 390 45 12,767 22,396 4,600 5,600 6,250 200 X 2 200 X 2 80 100 100
KSNC-550C 550 2,145,000 429 37 16,441 29,142 4,600 6,700 7,000 200 X 2 200 X 2 80 100 100
KSNC-600C 600 2,340,000 468 45 16,441 29,142 4,600 6,700 7,000 200 X 2 200 X 2 80 100 100
KSNC-700C 700 2,730,000 546 45 19,853 34,874 5,600 6,700 7,000 250 X 2 250 X 2 80 125 125
KSNC-750C 750 2,925,000 585 55 19,927 34,948 5,600 6,700 7,000 250 X 2 250 X 2 80 125 125
KSNC-800C 800 3,120,000 624 55 20,987 36,949 6,000 6,700 7,000 250 X 2 250 X 2 80 125 125
KSNC-875C 875 3,412,000 682.5 75 23,613 40,924 6,000 6,700 7,000 250 X 2 250 X 2 80 125 125

초저소음 대향류 밀폐형 냉각탑 (KSNC - CS Series)

초저소음 대향류 밀폐형 냉각탑
Model Capacity
(CRT)		 Heat
Load
(kcal/hour)		 Water
Flow
(m³/hour)		 Motor
(kW)		 Shipping
weight
(kg)		 Operating
weight
(kg)		 Dimension Piping Schedule
Length
(mm)		 Width
(mm)		 Height
(mm)		 Inlet
(A)		 Outlet
(A)		 Make-up
(A)		 Overflow
(A)		 Drain
(A)
KSNC-75CS 75 292,500 58.5 2.2 3,533 5,639 2,400 3,400 4,000 100 100 32 50 50
KSNC-85CS 85 331,500 66.3 3.7 3,551 5,656 2,400 3,400 4,000 125 125 32 50 50
KSNC-100CS 100 390,000 78 3.7 4,066 6,501 2,800 3,400 4,500 125 125 32 50 50
KSNC-115CS 115 448,500 89.7 5.5 4,081 6,516 2,800 3,400 4,500 125 125 32 50 50
KSNC-125CS 125 487,500 97.5 5.5 5,295 8,360 2,800 4,500 4,500 150 150 32 50 50
KSNC-135CS 135 526,500 105.3 7.5 5,336 8,639 2,800 4,500 4,500 150 150 32 50 50
KSNC-S150CS 150 585,000 117 11 5,455 8,808 2,800 4,500 4,500 150 150 32 50 50
KSNC-150CS 150 585,000 117 7.5 5,953 9,775 3,200 4,500 4,800 150 150 50 80 80
KSNC-150CS 150 585,000 117 7.5 5,953 9,775 3,200 4,500 4,800 150 150 50 80 80
KSNC-175CS 175 682,500 136.5 11 6,063 9,929 3,200 4,500 4,800 150 150 50 80 80
KSNC-200CS 200 780,000 156 11 6,743 11,542 3,600 4,500 5,250 200 200 50 80 80
KSNC-225CS 225 877,500 175.5 15 7,064 12,023 3,600 4,500 5,250 200 200 50 80 80
KSNC-250CS 250 975,000 195 15 8,201 13,830 3,600 5,100 5,600 150 X 2 150 X 2 50 80 80
KSNC-275CS 275 1,072,500 214.5 18.5 8,387 14,117 3,600 5,100 5,600 150 X 2 150 X 2 50 80 80
KSNC-300CS 300 1,170,500 234 18.5 9,200 15,401 3,600 5,600 5,600 150 X 2 150 X 2 50 80 80
KSNC-325CS 325 1,267,500 253.5 18.5 9,200 15,423 3,600 5,600 5,600 150 X 2 150 X 2 50 80 80
KSNC-350CS 350 1,365,000 273 18.5 10,712 18,067 3,900 6,200 6,000 150 X 2 150 X 2 50 80 80
KSNC-375CS 375 1,462,500 292.5 22 10,734 18,089 3,900 6,200 6,000 150 X 2 150 X 2 50 80 80
KSNC-400CS 400 1,560,000 312 30 11,081 18,560 3,900 6,200 6,000 150 X 2 150 X 2 50 80 80
KSNC-425CS 425 1,657,500 331.5 22 12,648 22,278 4,600 5,600 6,250 200 X 2 200 X 2 80 100 100
KSNC-450CS 450 1,755,000 351 22 12,767 22,396 4,600 5,600 6,250 200 X 2 200 X 2 80 100 100
KSNC-475CS 475 1,852,500 370.5 30 12,767 22,396 4,600 5,600 6,250 200 X 2 200 X 2 80 100 100
KSNC-500CS 500 1,950,000 390 22 16,441 29,142 4,600 6,700 7,000 200 X 2 200 X 2 80 100 100
KSNC-550CS 550 2,145,000 429 30 16,441 29,142 4,600 6,700 7,000 200 X 2 200 X 2 80 100 100
KSNC-650CS 650 2,535,000 507 30 19,853 34,874 5,600 6,700 7,000 250 X 2 250 X 2 80 125 125
KSNC-700CS 700 2,730,000 543 45 19,927 34,948 5,600 6,700 7,000 250 X 2 250 X 2 80 125 125
KSNC-750CS 750 2,925,000 585 45 20,987 36,949 6,000 6,700 7,000 250 X 2 250 X 2 80 125 125
KSNC-800CS 800 3,120,000 624 55 23,613 40,924 6,000 6,700 7,000 250 X 2 250 X 2 80 125 125
