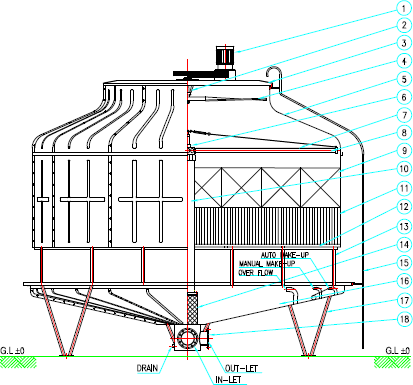

원형대향류형의 구조
NO	PARTS NAME	NO	PARTS NAME

1	MOTOR	10	CENTER PIPE
2	SPEED REDUCER	11	FILLER
3	REDUCER SUPPORT	12	FILLER SUPPORT
4	IMPELLER	13	CENTER SUPPORT
5	TOP CASING	14	STRAINER
6	SPRINKLER HEAD	15	LADDER
7	ELIMINATOR	16	TANK
8	SPRAY PIPE	17	LEG
9	CENTER CASING	18	SUCTION TANK

특징

FRP 제품본체 구조로 내식성과 내구성 우수 저소음, 고효율 양산체제로 가격이 저가이며, 설치장소의 제한을 받지 않음 소형(5RT~80RT), 대형(100RT~1000RT) 충진재의 독특한 형상으로 물의 접촉면적은 크게하여 냉각 효율 극대화 빌딩, 호텔, 공장등의 공조용, 사출기용, 대형 냉장고용 사용 열교환 성능 증대에 따른 냉각효과 향상

표준사양
			SNR-10	SNR-20	SNR-30	SNR-40	SNR-50	SNR-60	SNR-80	SNR-100	SNR-150
Operating Condition	Cooling Capacity	kcal/hr	39,000	78,000	117,000	156,000	195,000	234,000	312,000	390,000	585,000
	Water Flow Rate	Lpm	130	260	390	520	650	780	1,040	1,300	1,950
	Water Inlet Temp	℃	37
	Water Outlet Temp	℃	32
	Outdoor Air Temp	℃WB	27
Fan Assembly	Fan Type		Axial-Flow
	Fan Diameter	∮㎜	470	570	780	780	950	950	1158	1450	1780
	Number Of Blades	ea	4
	Motor	Hp×Sets	1/4×1	1/2×1	1×1	1×1	2×1	2×1	3×1	3×1	3×1
	Drive System		Single Reduction V-Belt Drive
Piping Diameter	Hot Water inlet Pipe	A	40×1	50×1	65×1	80×1	80×1	80×1	100×1	125×1	150×1
	Cold Water Outlet Pipe	A	40×1	50×1	65×1	80×1	80×1	80×1	100×1	125×1	150×1
	Drain Socket	A	25×1	25×1	25×1	25×1	25×1	25×1	25×1	40×1	50×1
	Overflow Socket	A	-	-	-	-	-	-	-	40×1	50×1
	Make-Up(Auto,Manual)	A	15×2	15×2	15×2	15×2	15×2	15×2	20×2	25×2	25×2
Make-Up	Evaporation Loss	%	0.83
Make-Up	Drift Loss	%	0.02
Materials	Casing		FRP
	Fan Blade/Fan Stack		FRP or Al-Alloy
	Spray Pipe		PVC
	Nozzle		PE or PVC
	Filter		PVC or PP
	Louver/Eliminator		PVC
	Cold Water Basin		FRP
	Basin Support		Channel, C-Channel + H.D.G
Overall Dimensions	Width(W)	∮㎜	870	870	1,380	1,555	1,760	1,760	2,100	2,700	3,300
	Length(L)	㎜	-	-	-	-	-	-	-	-	-
	Height(H)	㎜	1,620	1,620	1,985	2,100	2,300	2,420	2,900	3,180	3,400
Weight	Net Weight	kg	86	117	220	280	350	410	490	810	1,250
Weight	Operating Weight	kg	123	226	380	490	690	860	980	1,530	2,160

구분단위 기종
			SNR-200	SNR-250	SNR-300	SNR-400	SNR-500	SNR-600	SNR-700	SNR-800
Operating Condition	Cooling Capacity	kcal/hr	780,000	975,000	1,170,000	1,560,000	1,950,000	2,340,000	2,730,000	3,120,000
	Water Flow Rate	Lpm	2,600	3,250	3,900	5,200	6,500	7,800	9,100	10,400
	Water Inlet Temp	℃	37
	Water Outlet Temp	℃	32
	Outdoor Air Temp	℃WB	27
Fan Assembly	Fan Type		Axial-Flow
	Fan Diameter	∮㎜	1780	2350	2350	2950	2950	3300	3450	3600
	Number Of Blades	ea	4						6
	Motor	Hp×Sets	7.5×1	10×1	10×1	15×1	15×1	20×1	20×1	20×1
	Drive System		Single Reduction V-Belt Drive
Piping Diameter	Hot Water inlet Pipe	A	150×1	200×1	200×1	250×1	250×1	250×1	250×1	250×1
	Cold Water Outlet Pipe	A	150×1	200×1	200×1	250×1	250×1	250×1	250×1	250×1
	Drain Socket	A	50×1	50×1	50×1	50×1	65×1	65×1	80×1	80×1
	Overflow Socket	A	50×1	65×1	65×1	65×1	65×1	65×1	100×1	100×1
	Make-Up(Auto,Manual)	A	25×2	40×2	40×2	40×2	40×2	40×2	80×2	80×2
Make-Up	Evaporation Loss	%	0.83
Make-Up	Drift Loss	%	0.02
Materials	Casing		FRP
	Fan Blade/Fan Stack		FRP or Al-Alloy
	Spray Pipe		PVC
	Nozzle		PE or PVC
	Filter		PVC or PP
	Louver/Eliminator		PVC
	Cold Water Basin		FRP
	Basin Support		Channel, C-Channel + H.D.G
Overall Dimensions	Width(W)	∮㎜	3,500	4,100	4,550	5,400	5,400	6,600	6,860	7,800
	Length(L)	㎜	-	-	-	-	-	-	-	-
	Height(H)	㎜	3,300	3,400	3,570	4,430	4,750	4,750	5,100	5,580
Weight	Net Weight	kg	1,580	1,950	1,580	3,930	3,930	5,150	5,500	5,700
Weight	Operating Weight	kg	3,050	3,990	3,050	7,910	7,910	9,150	10,900	11,500
