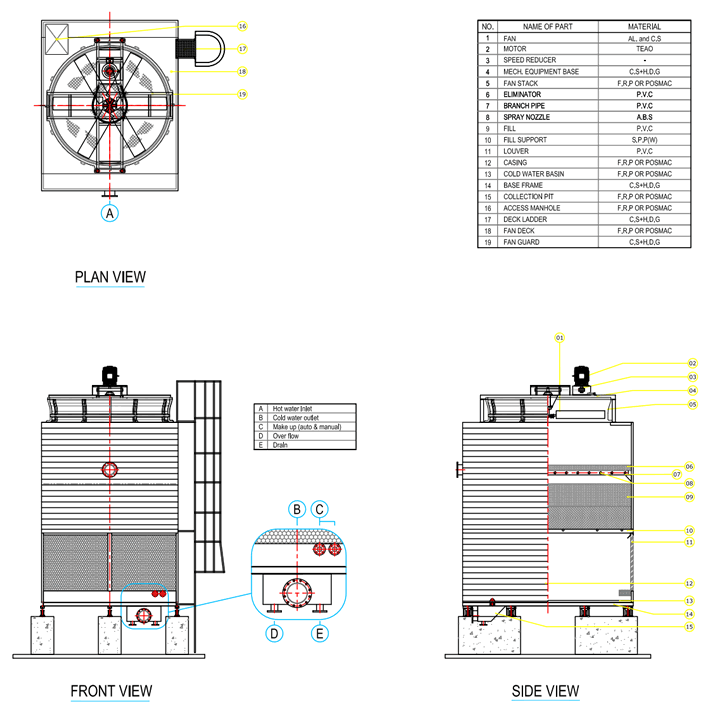

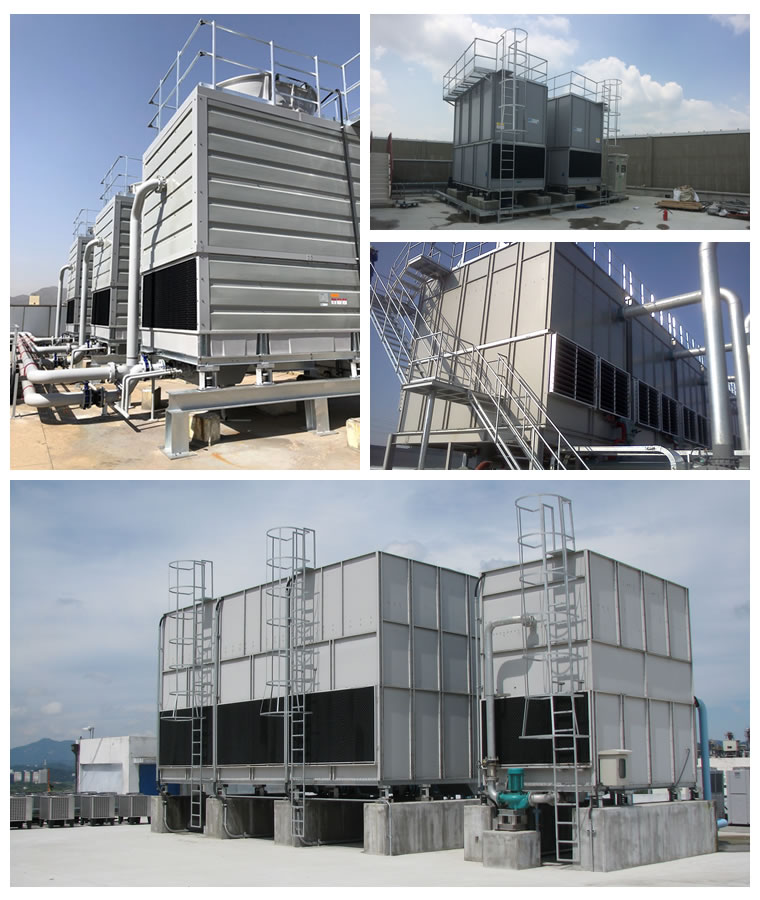

저소음 대향류 개방형 냉각탑 (KSNC Series C44A-12R03)

CASING : 내식성 및 내화학적 우수한 특성을 가진 FRP 또는 Al,Zn,Mg 3원계 고 내식성 합금 도금강판을 사용합니다.
FAN : 날개 각도의 조정이 용이한 구조로 Aluminum Blade의 Fan을 사용하여 운전소음과 진동을 최소화 하였습니다.
FILL : 난연성 PVC재질로서 열교환 효율을 극대화하는 동시에 공기의 저항이 적은 구조로 설계하였습니다.
ELIMINATE & LOUVER : 난연성 PVC재질로서 냉각수의 외부 비산을 최대한 억제하였고, 정압 손실을 최소화하였습니다.
BASIN : 내식성 및 내화학적 우수한 특성을 가진 FRP 또는 Al, Zn, Mg 3원계 고 내식성 합금 도금강판을 사용하며,
일체형(합금도금강판은 조립형)으로 제작하여 물의 누수가 없으며, 운전시 필요한 저장수를 충분히 확보할 수 있는 구조로 설계하였습니다.

저소음 대향류 개방형 냉각탑 (KSNC - L Series)

저소음 대향류 개방형 냉각탑
Model	Capacity (CRT)	Heat Load (kcal/hour)	Water Flow (m³/hour)	Motor (kW)	Shipping weight (kg)	Operating weight (kg)	Dimension			Piping Schedule
Model	Capacity (CRT)	Heat Load (kcal/hour)	Water Flow (m³/hour)	Motor (kW)	Shipping weight (kg)	Operating weight (kg)	Length (mm)	Width (mm)	Height (mm)	Inlet (A)	Outlet (A)	Make-up (A)	Overflow (A)	Drain (A)
KSNC-175L	175	682,500	136.5	3.7	2,744	4,450	2,400	3,400	3,600	150	150	32	50	50
KSNC-200L	200	780,000	156	5.5	2,761	4,501	2,400	3,400	3,600	150	150	32	50	50
KSNC-225L	225	877,500	175.5	5.5	2,800	5,117	2,800	3,400	4,100	200	200	32	50	50
KSNC-250L	250	975,000	195	7.5	3,095	5,168	2,800	3,400	4,100	200	200	32	50	50
KSNC-275L	275	1,072,500	214.5	7.5	4,057	5,168	2,800	4,500	4,100	200	200	32	50	50
KSNC-300L	300	1,170,000	234	11	4,096	6,792	2,800	4,500	4,100	200	200	32	50	50
KSNC-S350L	350	1,365,000	273	15	4,123	6,895	2,800	4,500	4,100	200	200	32	50	50
KSNC-350L	350	1,365,000	273	11	4,317	7,452	3,200	4,500	4,400	200	200	50	80	80
KSNC-400L	400	1,560,000	312	15	4,344	7,555	3,200	4,500	4,400	200	200	50	80	80
KSNC-450L	450	1,755,000	351	15	4,876	9,178	3,600	4,500	4,850	250	250	50	80	80
KSNC-500L	500	1,950,000	390	18.5	4,901	9,281	3,600	4,500	4,850	250	250	50	80	80
KSNC-550L	550	2,145,000	429	18.5	5,955	10,912	3,600	5,100	5,200	300	300	50	80	80
KSNC-600L	600	2,340,000	468	22	5,955	11,015	3,600	5,100	5,200	300	300	50	80	80
KSNC-650L	650	2,535,000	507	22	6,518	12,106	3,600	5,600	5,200	300	300	50	80	80
KSNC-700L	700	2,730,000	546	30	6,539	12,209	3,600	5,600	5,200	300	300	50	80	80
KSNC-750L	750	2,925,000	585	22	7,704	14,771	3,900	6,200	5,600	300	300	50	80	80
KSNC-800L	800	3,120,000	624	30	7,725	14,874	3,900	6,200	5,600	300	300	50	80	80
KSNC-850L	850	3,315,000	663	37	7,838	14,977	3,900	6,200	5,600	300	300	50	80	80
KSNC-900L	900	3,510,000	702	30	9,119	18,107	4,600	5,600	5,850	350	350	80	100	100
KSNC-950L	950	3,705,000	741	37	9,232	18,210	4,600	5,600	5,850	350	350	80	100	100
KSNC-950L	950	3,705,000	741	37	9,232	18,210	4,600	5,600	5,850	350	350	80	100	100
KSNC-1000L	1000	3,900,000	780	45	9,232	18,313	4,600	5,600	5,850	350	350	80	100	100
KSNC-1100L	1100	4,290,000	858	37	12,124	24,654	4,600	6,700	6,600	400	400	80	100	100
KSNC-1200L	1200	4,680,000	936	45	12,124	24,860	4,600	6,700	6,600	400	400	80	100	100
KSNC-1400L	1400	5,460,000	1,092	45	14,549	29,793	5,600	6,700	6,600	450	450	80	125	125
KSNC-1500L	1500	5,850,000	1,170	55	14,619	30,308	5,600	6,700	6,600	450	450	80	125	125
KSNC-1600L	1600	6,240,000	1,248	55	15,275	33,033	6,000	6,700	6,600	450	450	80	125	125
KSNC-1750L	1750	6,825,000	1,365	75	15,420	33,548	6,000	6,700	6,600	450	450	80	125	125

초저소음 대향류 개방형 냉각탑 (KSNC - S Series)

초저소음 대향류 개방형 냉각탑
Model	Capacity (CRT)	Heat Load (kcal/hour)	Water Flow (m³/hour)	Motor (kW)	Shipping weight (kg)	Operating weight (kg)	Dimension			Piping Schedule
Model	Capacity (CRT)	Heat Load (kcal/hour)	Water Flow (m³/hour)	Motor (kW)	Shipping weight (kg)	Operating weight (kg)	Length (mm)	Width (mm)	Height (mm)	Inlet (A)	Outlet (A)	Make-up (A)	Overflow (A)	Drain (A)
KSNC-150S	150	585,000	117	2.2	2,735	4,372	2,400	3,400	3,600	125	125	32	50	50
KSNC-175S	175	682,500	136.5	3.7	2,744	4,432	2,400	3,400	3,600	150	150	32	50	50
KSNC-200S	200	780,000	156	3.7	3,064	5,035	2,800	3,400	4,100	200	200	32	50	50
KSNC-225S	225	877,500	175.5	5.5	3,081	5,103	2,800	3,400	4,100	200	200	32	50	50
KSNC-250S	250	975,000	195	5.5	4,043	6,637	2,800	4,500	4,100	200	200	32	50	50
KSNC-275S	275	1,072,500	214.5	7.5	4,057	6,702	2,800	4,500	4,100	200	200	32	50	50
KSNC-S300S	300	1,170,000	234	11	4,096	6,793	2,800	4,500	4,100	200	200	32	50	50
KSNC-300S	300	1,170,000	234	7.5	4,278	7,283	3,200	4,500	4,400	200	200	50	80	80
KSNC-350S	350	1,365,000	273	11	4,317	7,424	3,200	4,500	4,400	200	200	50	80	80
KSNC-400S	400	1,560,000	312	11	4,849	8,969	3,600	4,500	4,850	200	200	50	80	80
KSNC-450S	450	1,755,000	351	15	4,876	9,126	3,600	4,500	4,850	250	250	50	80	80
KSNC-500S	500	1,950,000	390	15	5,930	10,730	3,600	5,100	5,200	250	250	50	80	80
KSNC-550S	550	2,145,000	429	18.5	5,955	10,885	3,600	5,100	5,200	300	300	50	80	80
KSNC-600S	600	2,340,000	468	18.5	6,518	11,918	3,600	5,600	5,200	300	300	50	80	80
KSNC-650S	650	2,535,000	507	22	6,518	12,058	3,600	5,600	5,200	300	300	50	80	80
KSNC-700S	700	2,730,000	546	18.5	7,704	14,539	3,900	6,200	5,600	300	300	50	80	80
KSNC-750S	750	2,925,000	585	22	7,704	14,696	3,900	6,200	5,600	300	300	50	80	80
KSNC-800S	800	3,120,000	624	30	7,725	14,874	3,900	6,200	5,600	300	300	50	80	80
KSNC-850S	850	3,315,000	663	22	9,098	17,708	4,600	5,600	5,850	300	300	80	100	100
KSNC-900S	900	3,510,000	702	30	9,119	17,887	4,600	5,600	5,850	350	350	80	100	100
KSNC-950S	950	3,705,000	741	37	9,232	18,157	4,600	5,600	5,850	350	350	80	100	100
KSNC-1000S	1,000	3,900,000	780	30	12,011	24,010	4,600	6,700	6,600	350	350	80	100	100
KSNC-1100S	1,100	4,290,000	858	37	12,124	24,492	4,600	6,700	6,600	400	400	80	100	100
KSNC-1300S	1,300	5,070,000	1,014	37	14,549	29,501	5,600	6,700	6,600	400	400	80	125	125
KSNC-1400S	1,400	5,460,000	1,092	45	14,549	29,870	5,600	6,700	6,600	450	450	80	125	125
KSNC-1500S	1,500	5,850,000	1,170	45	15,205	31,633	6,000	6,700	6,600	450	450	80	125	125
KSNC-1600S	1,600	6,240,000	1,248	55	15,275	32,072	6,000	6,700	6,600	450	450	80	125	125
